EPSON TM-U220 IP Configuration Windows Version (firmware v. 3.00) Download PDF

Out of the box or after a factory reset of this printer has been performed, the default settings for the EPSON TM-U220 need to be configured before use.

The steps are:

  • Plug the printer directly into the ethernet port on your computer.
  • Configure Windows to see the printer.
  • Use Chrome or another browser to go to the printer’s configuration page.
  • Change the printer’s network settings to automatic.

What you’ll need:

  • Epson TM-U220 with Power
  • Ethernet Cable
  • Windows Computer

Hardware Configuration:

Plug power and ethernet cable into Epson printer and turn it on.

Plug ethernet cable from the back of the printer directly into the computer. Do not plug it into the router.

Software Configuration:

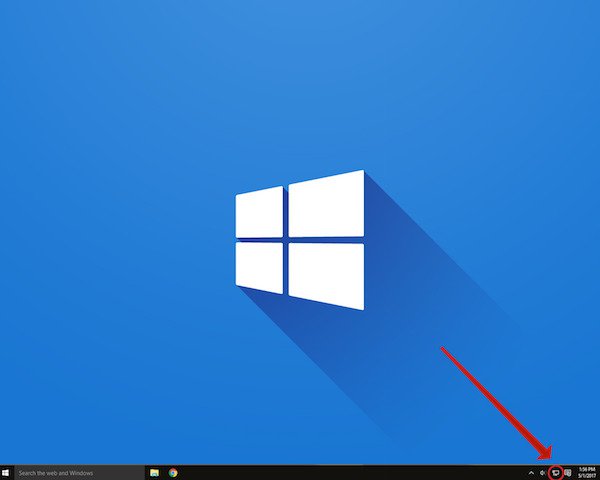

From the Windows desktop, locate your computer’s network status icon in the tray (bottom right corner of the taskbar, next to the time).

windows 10 screen pointing to task bar

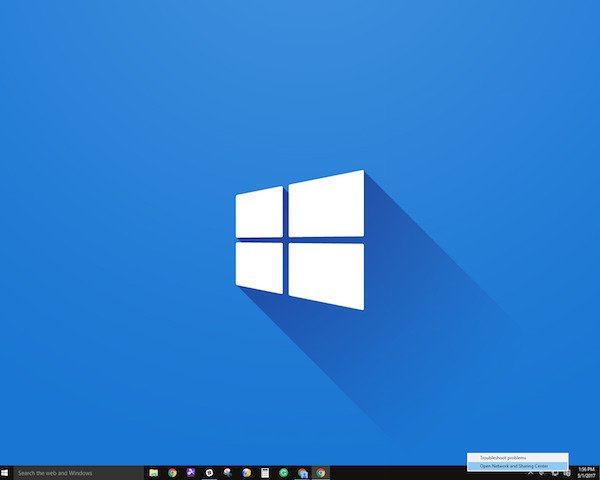

RIGHT click on the icon and from the popup choose Open Network and Sharing Center.

windows 10 screen

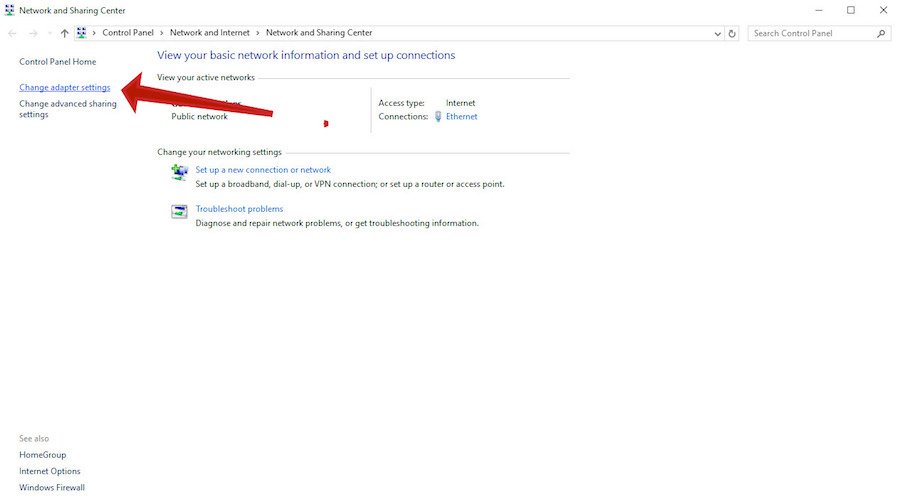

When the window for Network Sharing Center opens, click Change Adapter Settings on the left.

epson network connections

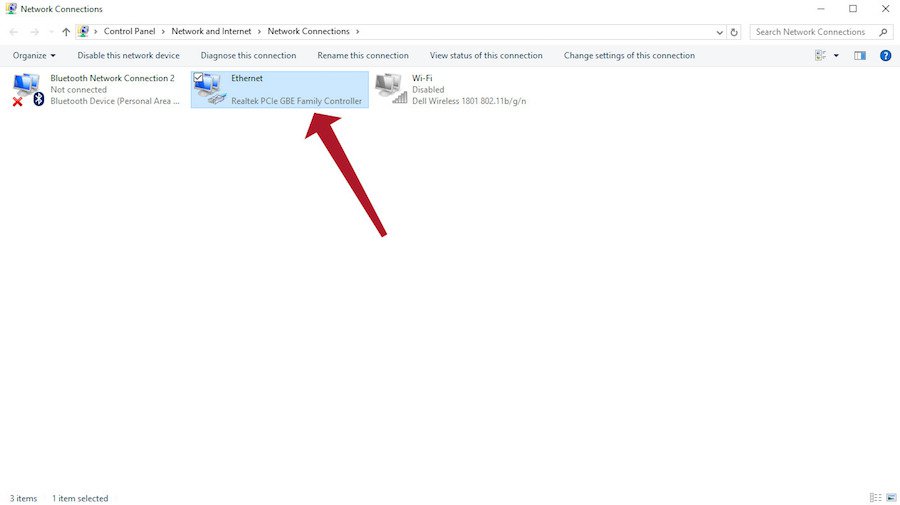

This will open your Network Connections.

epson rezkupos connections page

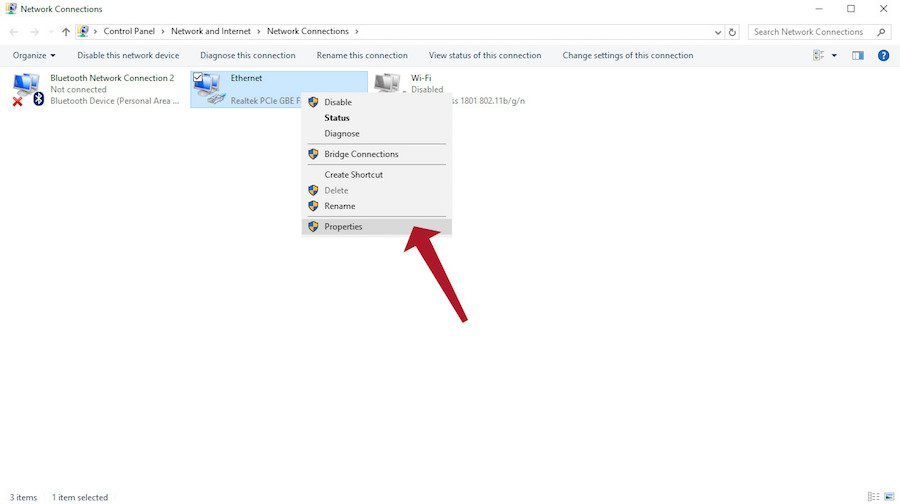

RIGHT Click on the Ethernet adapter and click on Properties

epson printer setup

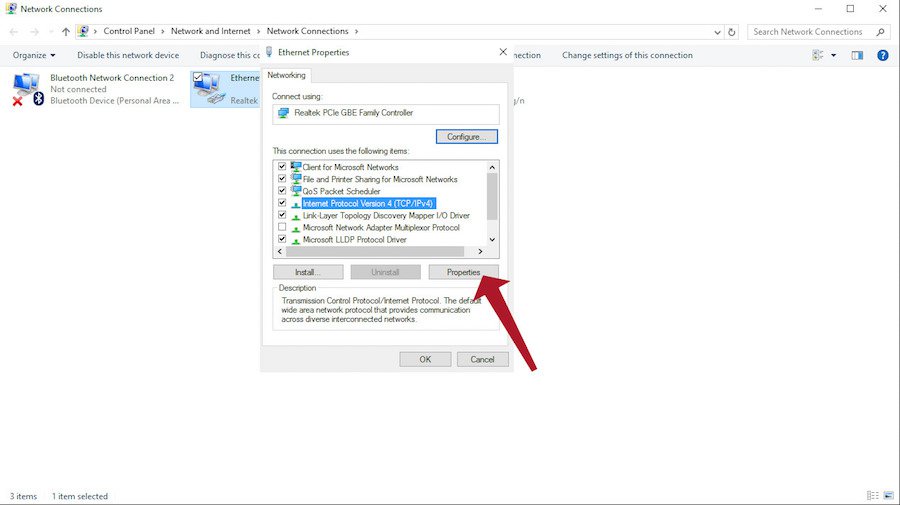

In the box that pops up, look through the list until you see Internet Protocol Version 4 (TCP/IPv4) and click on it to highlight.

epson networking guide

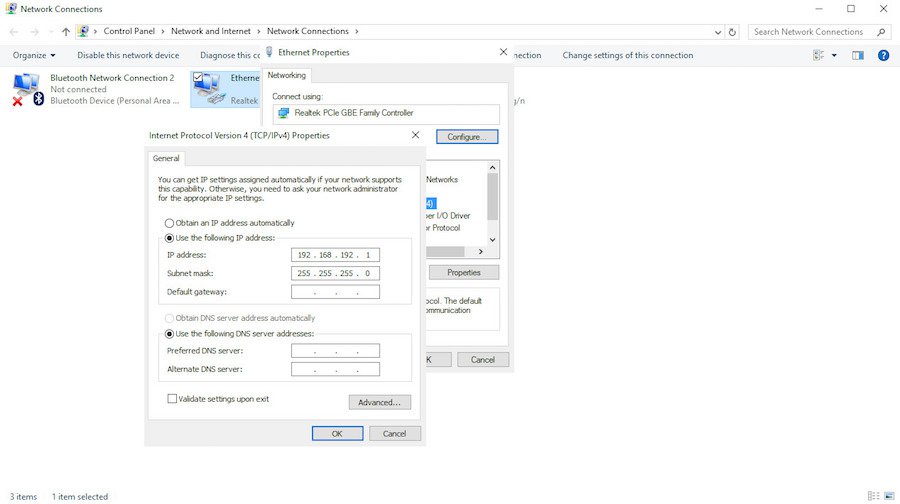

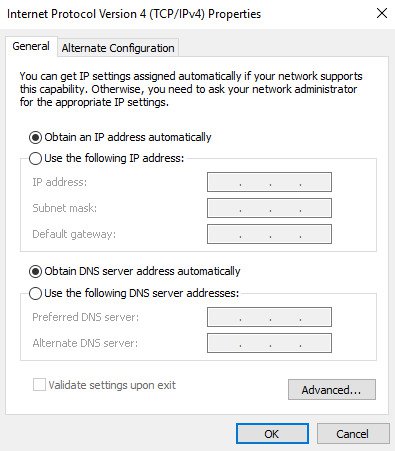

Click on the Properties button. This opens a settings window. Typically, your adapter will be set to Obtain an IP address automatically. Click to change the setting to Use the Following IP address.

epson guided help windows v3

NOTE: If your configuration is something other than Obtain IP address automatically, record the settings either with a screenshot or write them down, because you’ll need to change them back after you have finished configuring the printer!

Set IP address to
Subnet mask to

Leave everything else blank.

Click OK for this window ONLY.

DO NOT close the Network settings window, you’ll need to come back and undo these changes when the printer is configured!

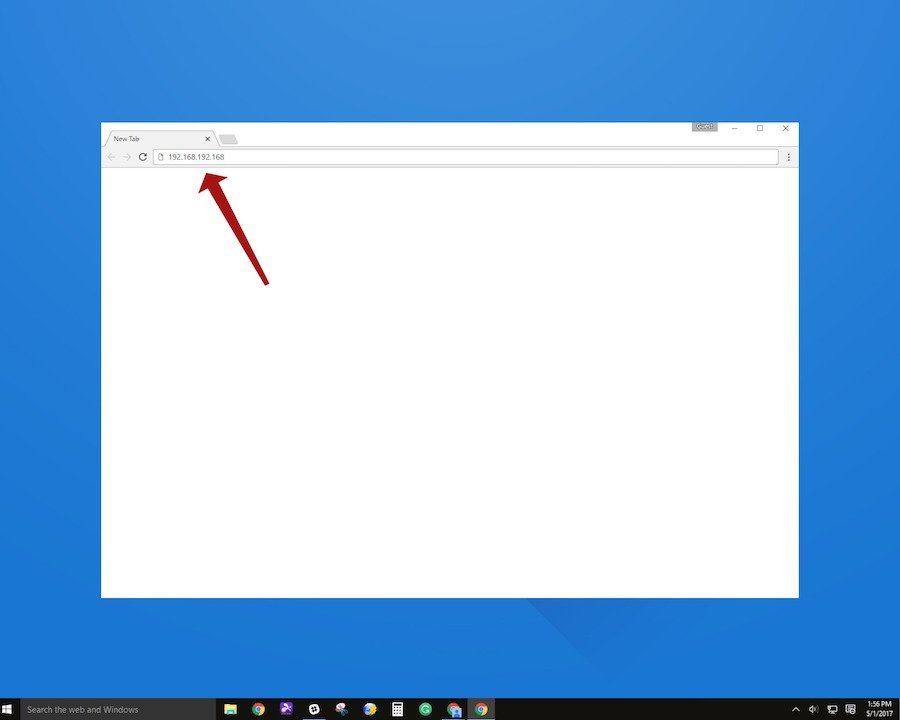

Open your web browser.

epson local host

In the address bar, type and then press enter.

When the configuration page loads, look along the left side for the red bar that says CONFIGURATION. Underneath Configuration, you’ll see TCP/IP. Click this link.

There are two links that say TCP/IP. We want the second one, under CONFIGURATION.

epson printer configuration screen

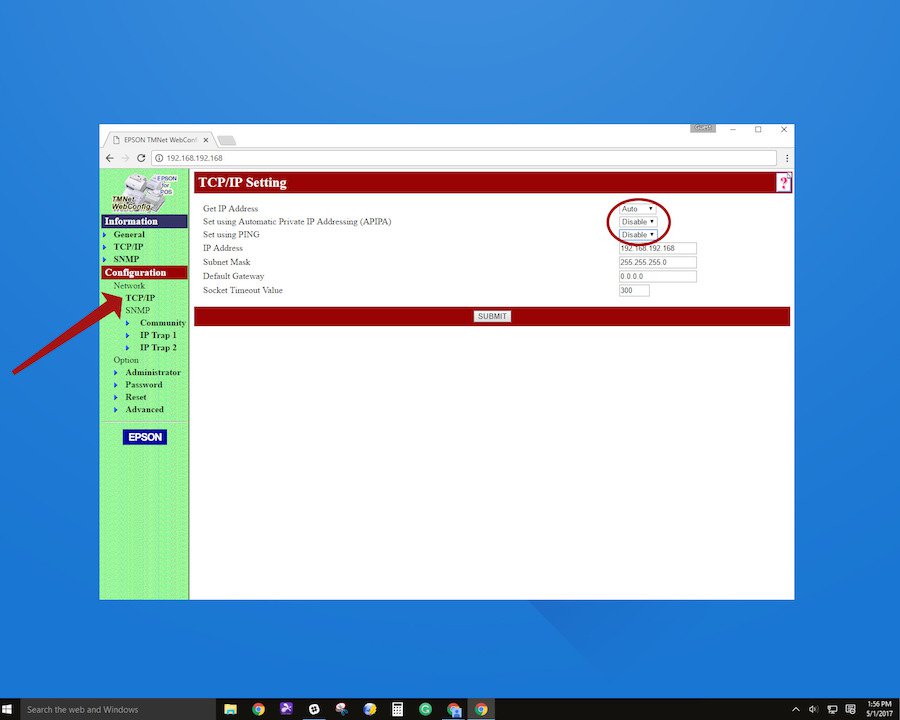

On the TCP/IP Setting page, click the drop-down box to change the Get IP Address setting to Auto. Change Set using PING to Disable.

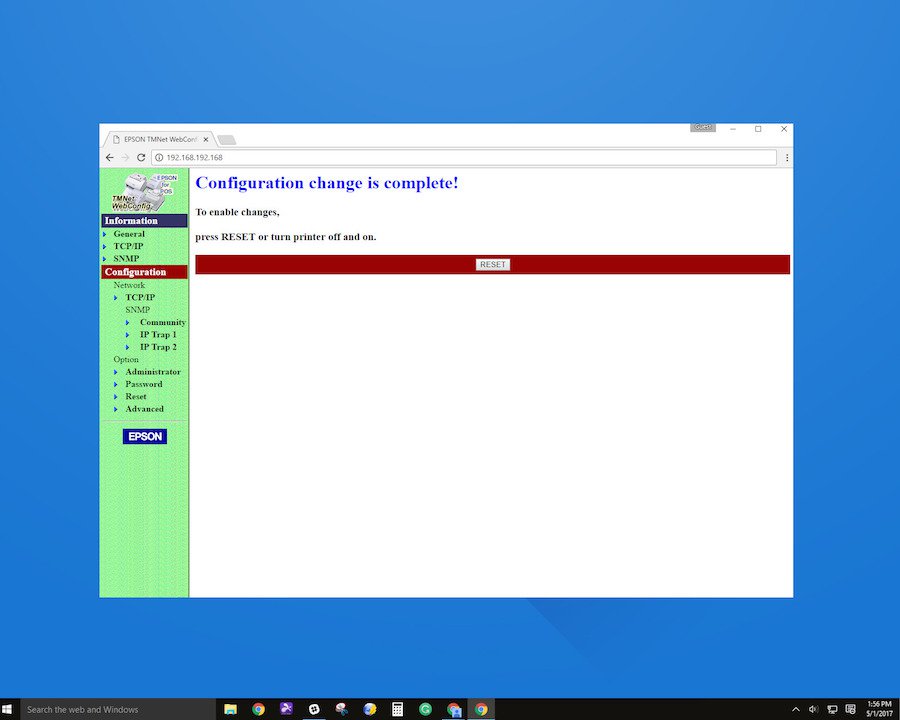

● Click the Submit button to save changes.

epson configuration screen complete

● Click the Reset button or just turn your printer off and back on.

Configuration of the printer is complete, but you are not done yet!

Close Chrome and go back to your network settings. You must change the settings back to what they were. Otherwise, your network will not be properly configured for this computer.

The network settings window should still be open.

epson printer setup help

Make sure that Internet Protocol Version 4 (TCP/IPv4) is still selected in the list.

Click the Properties button to reopen the settings window.

point of sale epson printers


The most likely setting is to Obtain an IP address automatically, but if your system was configured differently, it’s important to fill in the correct settings.

Click OK to save and close the window.

You can now safely close all the network settings windows you have open.

To use the TM-U220 printer, plug the printer into your router and follow the printer configuration instructions for Rezku POS.
