EPSON TM-U220 IP Configuration macOS Version (Firmware v. 4.00) Download PDF

Out of the box or after a factory reset of this printer has been performed, the default settings for the EPSON TM-U220 need to be configured before use.

The steps are:

  • Plug the printer directly into the ethernet port on your computer.
  • Configure Mac to see the printer.
  • Use Chrome or another browser to go to the printer’s configuration page.
  • Change the printer’s network settings to automatic.

What you’ll need:

  • Epson TM-U220 with Power
  • Ethernet Cable
  • Mac Computer

Hardware Configuration:

Plug power and ethernet cable into Epson printer and turn it on.

Plug ethernet cable from the back of the printer directly into the computer. Do not plug it into the router.

Software Configuration:

From the Mac desktop, click on System Preferences, in the Dock

ipad rezku point of sale rezku pos







Click on Network.

This window shows all your network connections.



ipad rezku point of sale rezku pos

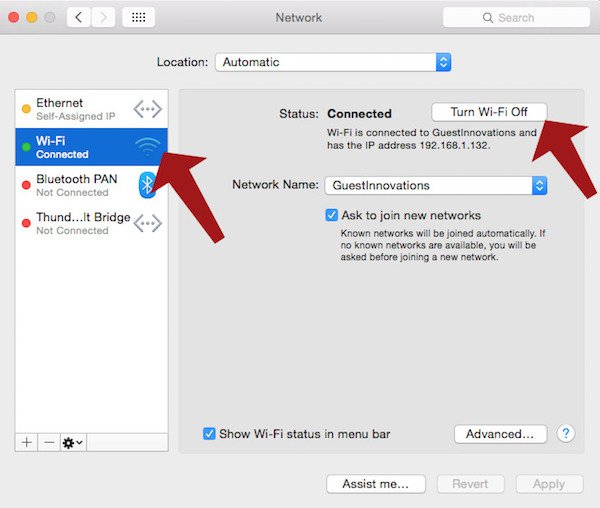

Select your Wi-Fi connection on the left and click Turn Wi-Fi Off.

Now, select your Ethernet connection on the left.



ipad rezku point of sale rezku pos

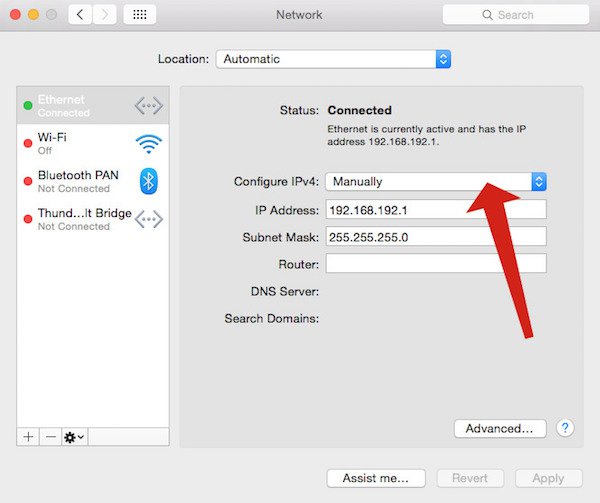

By default your IPv4 settings are probably set to Using DHCP. Click the drop down box and change this setting to Manually



ipad rezku point of sale rezku pos

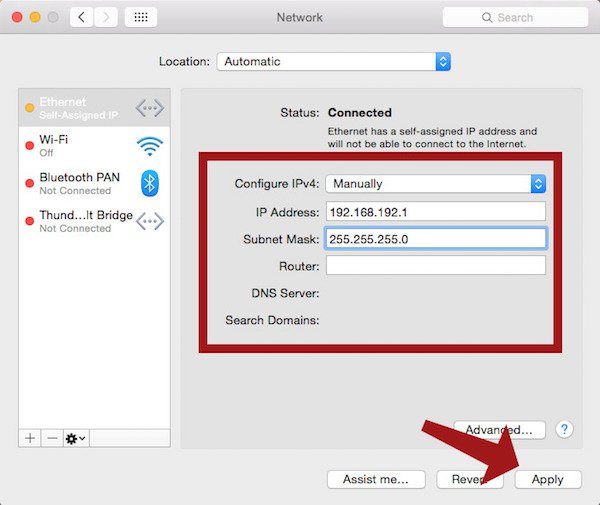

Set IP address to 192.168.192.1

Subnet mask to 255.255.255.0



ipad rezku point of sale rezku pos

Leave everything else blank.

Click Apply

DO NOT close the Network window, you’ll need to come back and undo these changes when the printer is configured!

Open Chrome.

ipad rezku point of sale rezku pos

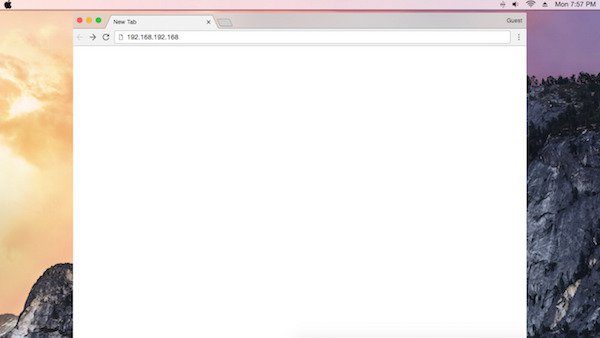

In the address bar, type 192.168.168.192 and then press enter.

ipad rezku point of sale rezku pos

You will receive a privacy warning. Do not be alarmed. You are just connecting to the Epson printer.

Click ADVANCED to show details and allow you to bypass the warning.

ipad rezku point of sale rezku pos

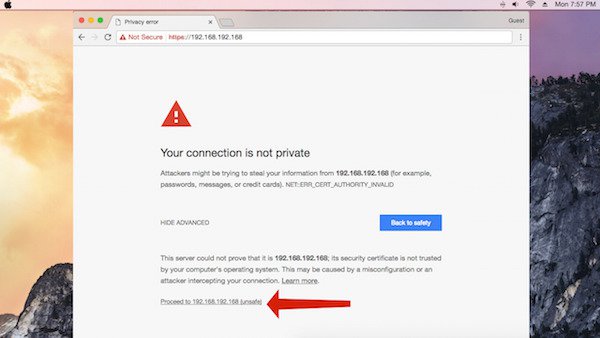

Click Proceed to 192.168.192.168 (unsafe), despite the warning.

ipad rezku point of sale rezku pos

You will be asked to enter a username and password to log in.

User Name: epson
Password: epson

Enter epson for both the User name and the Password, all lowercase!

ipad rezku point of sale rezku pos

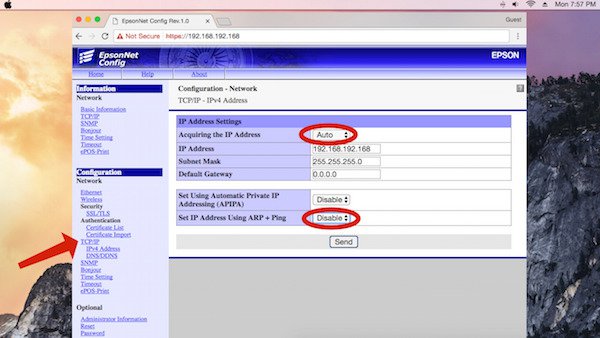

When the configuration page loads, look along the left side for a blue bar that says CONFIGURATION. Underneath Configuration, you’ll see TCP/IP.

Click here.

There are two links that say TCP/IP. We want the second one, under CONFIGURATION

On the TCP/IP Setting page, click the drop-down box to change Acquiring the IP Address to Auto. Change Set IP Address Using ARP + PING to Disable.

Other settings stay the same

Click the Send button to save the changes.

ipad rezku point of sale rezku pos

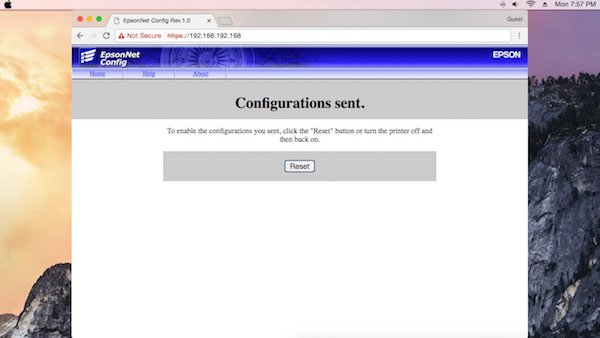

Click the Reset button or just turn your printer off and back on.

Configuration of the printer is complete, but you are not done yet!

Close Chrome and go back to your network settings. You must change the settings back to what they were. Otherwise, your network will not be properly configured for this computer.

The network settings window should still be open.

ipad rezku point of sale rezku pos

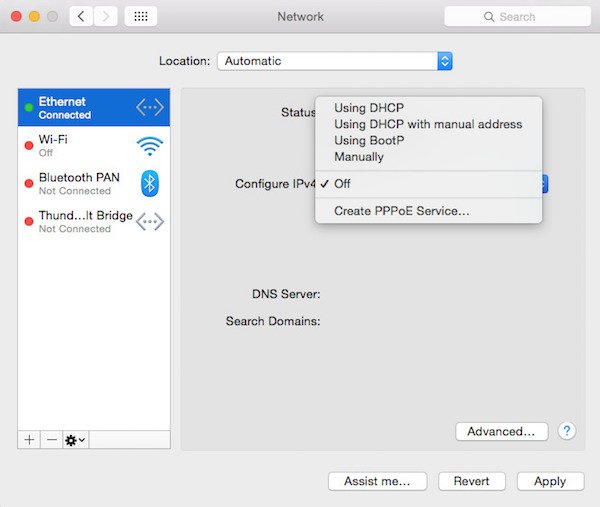

● Click on the drop down box next to Configure IPv4.

Assuming you use your Mac’s Wi-Fi for network access, choose Off from the drop-down menu.



ipad rezku point of sale rezku pos

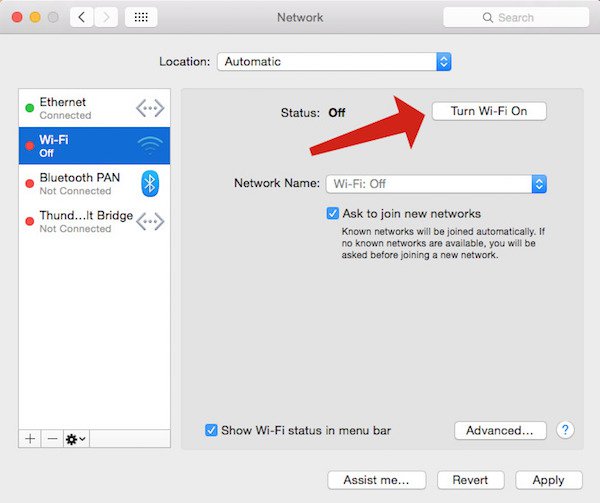

Click Wi-Fi on the left to manage the connection, then click the button to Turn Wi-Fi On.

ipad rezku point of sale rezku pos







NOTE: You need to change your network settings back to what they were. These are the most common settings. If your system was configured differently, it’s important to use the original settings.

Click Apply to save. You can close the network settings window now

To use the TM-U220 printer, plug the printer into your router and follow the printer configuration instructions for Rezku POS.
